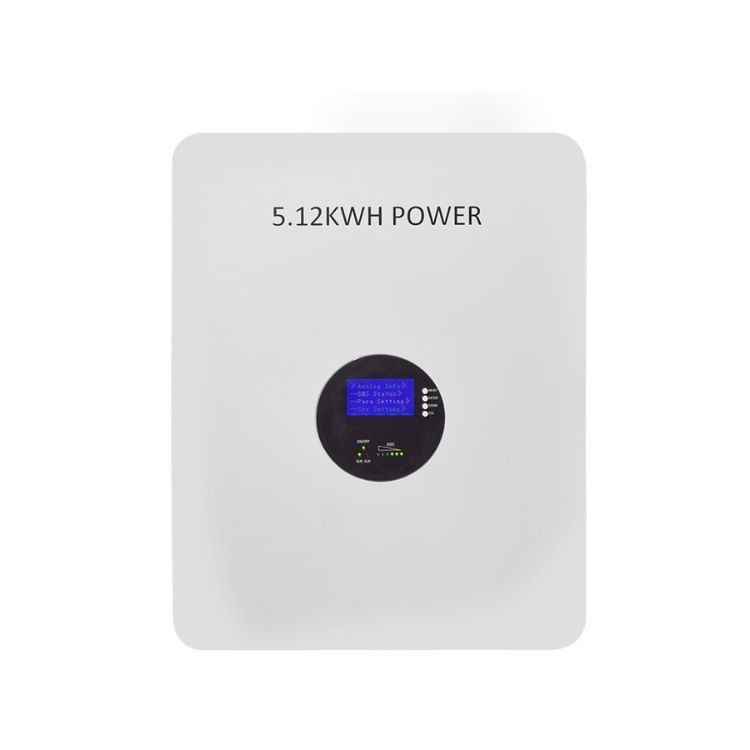

Lithium Battery Manufacturers 48V100Ah 5kwh Solar Battery Pack
This 5kWh Powerwall is a safe, durable, and cost-effective energy storage solution, ideal for residential solar systems. Built with high-quality LiFePO₄ cells and a smart Battery Management System (BMS), it delivers stable performance and long service life.
An integrated LCD screen provides real-time monitoring of voltage, current, state of charge, power output, and system status—ensuring users stay informed at all times.
The system supports smart communication via RS485/CAN, and is widely compatible with major brands of off-grid and hybrid inverters, as well as MPPT solar charge controllers.
With modular capacity options from 5kWh to 160kWh, this Powerwall system is fully scalable to meet growing household energy demands.
.

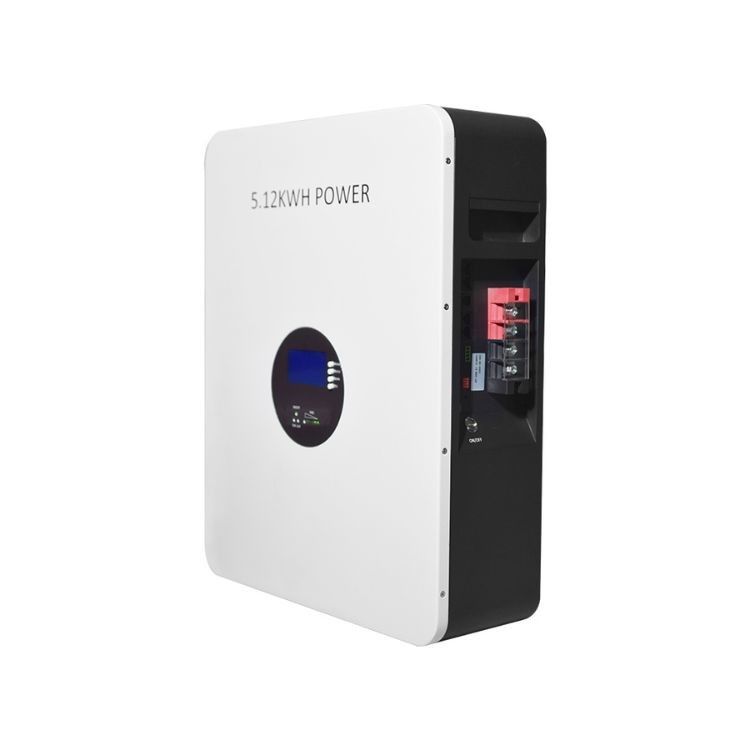

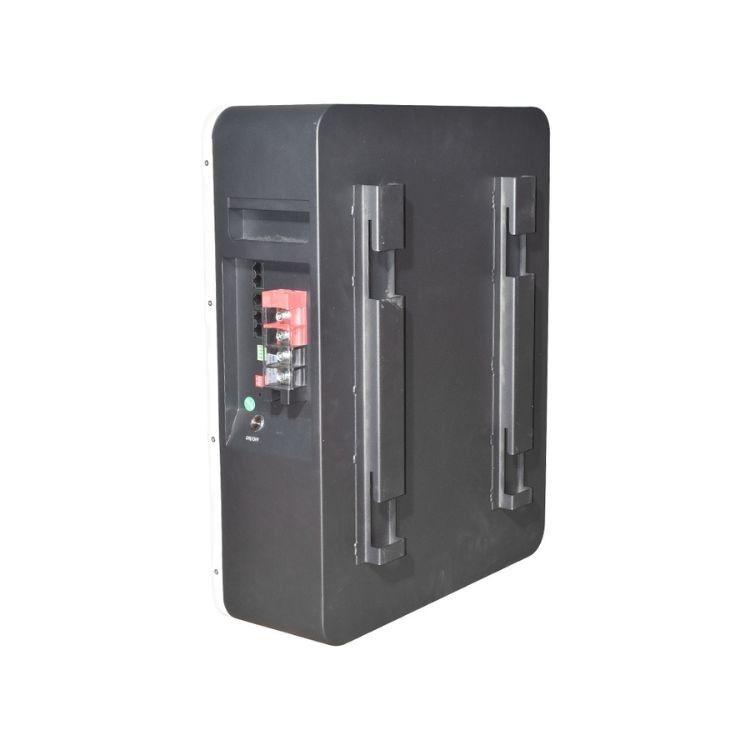

Slim Profile, Wall-Mount Friendly
Designed to be mounted on walls with minimal footprint—ideal for tight indoor spaces and modern interiors.
Safe LiFePO₄ Cells
Made from high-quality lithium iron phosphate cells, known for outstanding stability and built-in safety.
Durable and Long-Lasting
Supports up to 8000 deep-cycle charges, maintaining consistent performance over 10+ years of use.
Intelligent Battery Control
Equipped with a smart BMS that prevents overvoltage, deep discharge, overcurrent, overheating, and short circuit risks.
Compact Yet Powerful
Efficient energy storage design delivers high output while taking up minimal installation space.
Strong Load Handling
Built to manage high current levels, ensuring fast recharge times and reliable output during peak demand.
Expandable Energy Capacity
Parallel connection of multiple units (up to 16) allows easy scaling to meet larger power requirements.
Flexible Connectivity Options
Supports RS485/CAN communication and offers app control via Wi-Fi or Bluetooth as an option.
Adaptable to Harsh Climates
Designed to function reliably across a broad temperature range: -20°C to +60°C.
No Routine Maintenance Required
Sealed design eliminates the need for regular upkeep—plug in and operate worry-free.
SPECIFICATIONS :
| Model |
HY5KWH |
HY10KWH |
| Energy |
5120WH |
10240WH |
| Nominal Voltage (V) |
51.2V |
51.2V |
| Rated Capacity (Ah) |
100Ah |
200Ah |
| Chemistry |
Lithium iron phosphate (LiFePo4) |
| Design Life |
More than 10 years |
| Cycle Life |
More than 8000 cycles at 80% DOD. |
| Communication Protocol |
CAN , RS485 |
| Display |
LED Display |
| Scalable(Parallel Function) |
Yes, Maximum 16 Packs |
| Max. Charging Current |
100A |
200A |
| Max. Continue Discharging Current |
100A |
200A |
| Battery Dimensions (MM) |
565*445*124mm |
748*525*230mm |
| Weight |
Approx: 45kg |
Approx: 75kg |
| Battery Protection |
Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance |
| Outer Package Material |
Power Coated steel case IP60 |
| Operating Temperature |
Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃ |
