Name: Expandable 24v100ah Rack Mount Solar Battery Household Lithium Battery
Brand: Heyi Energy Co,.ltd
SKU: 2.56KWH
Price: 600.00 USD
Availability: InStock

Home > products > Home Energy Storage System >

Expandable 24v100ah Rack Mount Solar Battery Household Lithium Battery

24v100ah Rack Mount Solar Battery

Expandable Rack Mount Solar Battery

24v100ah Household Lithium Battery

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

UN38.3 , MSDS , IS9001

Model Number:

2.56KWH

Request A Quote

Expandable 24v100ah Rack Mount Solar Battery Household Lithium Battery

Product Details

Nominal Voltage:

24V

Capacity:

2.56 KWh

Logo:

Can Be Customized

Battery Cell:

LifePO4 3.2V

Temperature Range:

Wide

Protocol:

RS485 And RS232

Protection:

Built-in BMS

Standard Charge Current:

Constant Current 1C

Design:

Rack Mounted

Cell Type:

Prismatic Cell

The Discharge Rate:

Keywords:

Battery Lithium Lifepo4

Chemistry:

LiFePO4

Storage Type:

Normal

Highlight:

24v100ah Rack Mount Solar Battery

Expandable Rack Mount Solar Battery

24v100ah Household Lithium Battery

Payment & Shipping Terms

Minimum Order Quantity

Price

USD500~700

Packaging Details

wooden case

Delivery Time

10 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1 GWH

Safe 5KWH Lifepo4 Battery Wall Mounted Energy Storage Battery Space Saving

Get Best Price

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems

Get Best Price

High Capacity 20kwh Lithium Battery All In One Inverter Battery For Home Energy Storage System

Get Best Price

video

51.2V300ah 15kwh Lifepo4 Battery All In One Solar Battery Easy Installation

Get Best Price

+86 18674708020

info@heyienergy.com

Contact Now

Product Description

Expandable 24v 100ah Rack Mounted Lithium Battery Wholesaler

Looking for a reliable 24V 100Ah rack-mounted lithium battery wholesaler? Our expandable 24V LiFePO₄ battery module is engineered for high performance, long life, and safe operation—perfect for solar energy storage, telecom backup, and commercial power systems.

Built with brand-new Grade A lithium iron phosphate (LiFePO₄) cells, this battery features a smart Battery Management System (BMS) that provides multi-level protection and ensures consistent performance over thousands of cycles.

This modular battery supports parallel expansion, making it easy to scale your system from small residential setups to large commercial or industrial applications. Compatible with 24V and 48V configurations, it integrates seamlessly with off-grid and hybrid inverters, MPPT solar charge controllers, and existing battery systems.

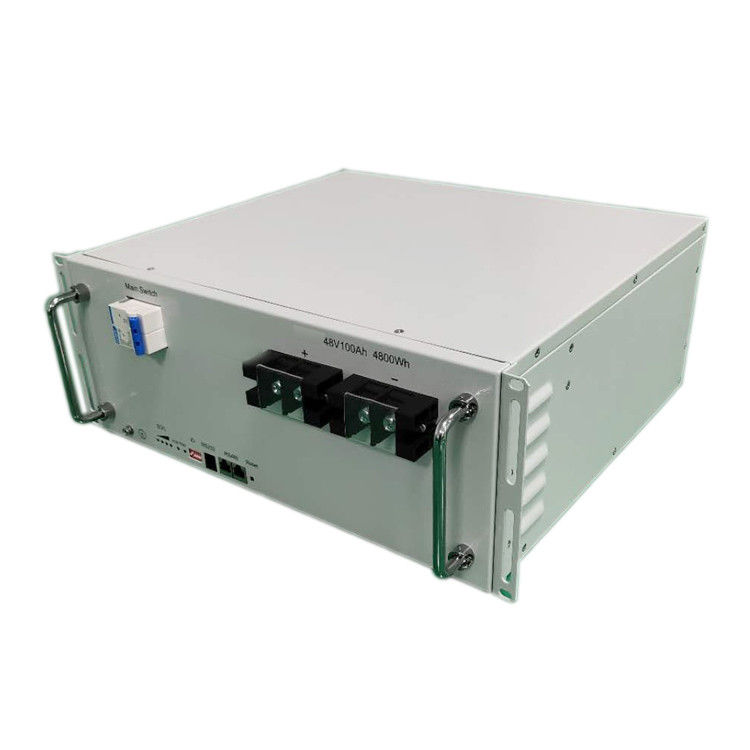

Expandable 24v100ah Rack Mount Solar Battery Household Lithium Battery 0

Specification :

Model	SM24-100	SM24-150	SM24-200	SM48-50	SM48-100	SM48-150
Energy	2560Wh	3840Wh	5120Wh	2400Wh	4800Wh	7200Wh
Nominal Voltage (V)	25.6V	25.6V	25.6V	48V	48V	48v
Rated Capacity (Ah)	100Ah	150Ah	200Ah	50Ah	100Ah	150Ah
Chemistry	Lithium Iron Phosphate (LiFePo4)
Design Life	More than 10 years
Cycle Life	More than 3500 cycles at 80% DOD.
Communication Protocol	CAN , RS485 , RS232
Display	LED Display Optional
Internal Impedance	50 mΩ
Max. Charging Current	50A	80A	100A	50A	100A	100A
Max. Continue Discharging Current	80A	100A	100A	70A	100A	100A
Battery Dimensions (MM)	438375133mm	442400177mm	442400177mm	438375133mm	442400177mm	442400177mm
Weight	Approx: 40kg	Approx: 58kg	Approx: 70kg	Approx: 40kg	Approx: 70kg	Approx: 80kg
Battery Protection	Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material	Black Power Coated steel case (battery rack or cabinet is optional)
Operating Temperature	Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

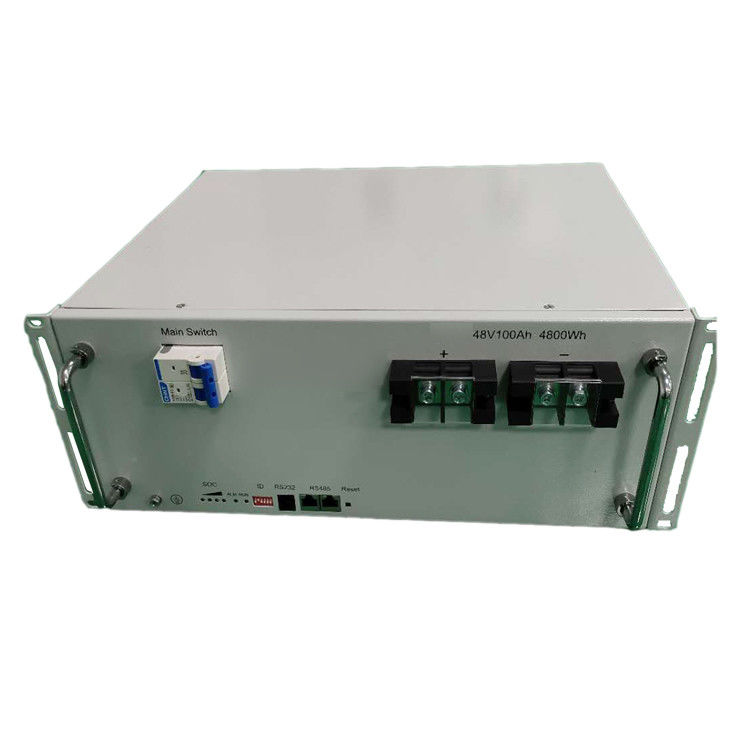

Expandable 24v100ah Rack Mount Solar Battery Household Lithium Battery 1

Features :

Wholesale-ready 24V 100Ah LiFePO₄ rack-mounted battery
High safety, long cycle life (6000+ cycles at 80% DOD)
Advanced BMS for full protection and stable output
Easy to install, modular, and parallel expandable
Compatible with leading inverter and solar controller brands
Ideal for home solar, telecom stations, off-grid cabins, and backup systems
Applications :
Home solar storage systems
Wind-solar hybrid systems
Telecom base stations
Emergency backup power
Stationary energy storage projects
