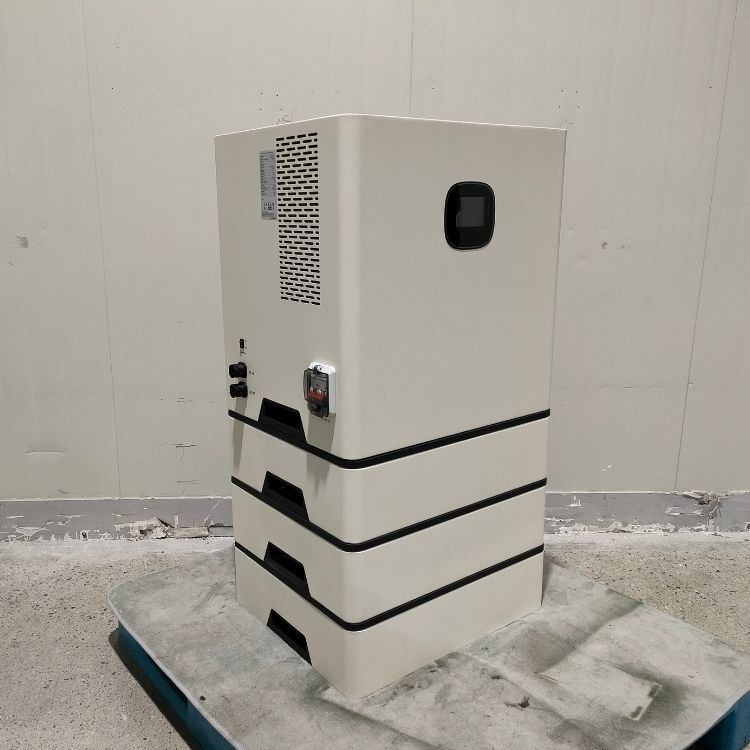

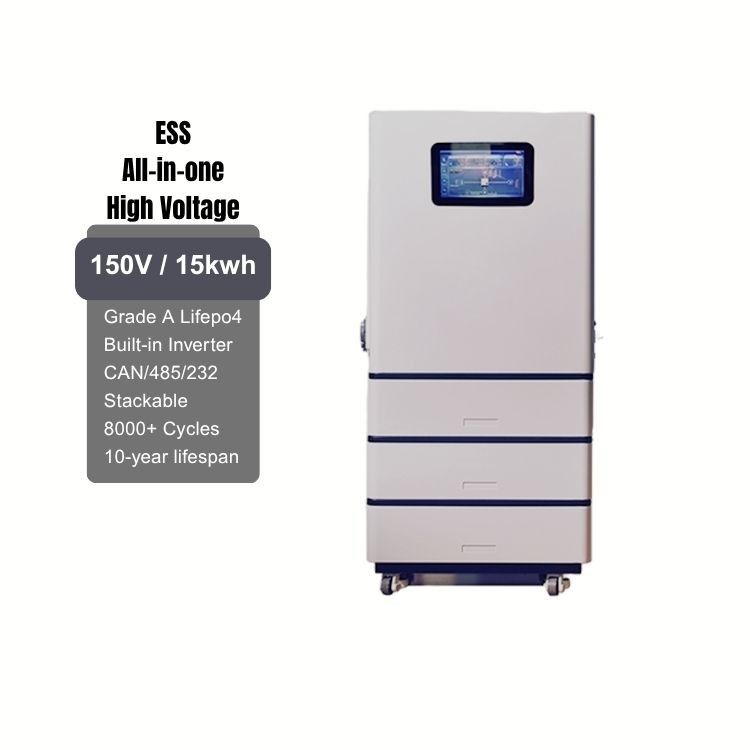

153.6V100AH All In One 15kwh ESS Lithium Battery With Inverter
Our 153.6V 15kWh Stackable Energy Storage System is a high-voltage, all-in-one power solution designed for residential and commercial energy storage needs. Utilizing safe and long-lasting LiFePO₄ (lithium iron phosphate) battery chemistry, this system features a modular, stackable design for flexible capacity expansion and space-efficient installation.
Equipped with a built-in inverter and an intelligent Battery Management System (BMS), it ensures seamless energy conversion, advanced protection, and real-time monitoring. The integrated design simplifies system configuration while delivering robust performance in both on-grid and off-grid applications.
Ideal for solar energy storage, backup power, and peak load shaving, this system provides 15kWh of reliable power at 153.6V, making it a scalable and future-ready choice for modern energy systems.
All in one lithium iron phosphate battery high voltage battery pack
All-in-One Design
The system integrates high-capacity LiFePO4 batteries with an optional inverter (8kW / 10kW / 15kW), offering a streamlined, space-saving solution for residential energy storage.
Easy Installation
With a modular, stackable structure and bottom casters, the system is designed for quick setup and effortless mobility.
Smart Communication
Supports multiple communication protocols including CAN, RS232, and RS485, ensuring smooth integration with various inverters and energy
management systems.
Flexible Application
Compatible with both off-grid and hybrid grid systems, meeting diverse energy needs in different scenarios.
Long Lifespan & Reliability
Utilizes Grade A LiFePO4 cells with a cycle life of up to 8000 cycles, backed by a 10-year warranty for long-term peace of mind.
Modular and Scalable
Available in configurations from 5kWh to 35kWh, the system is easily expandable to match your household’s growing energy requirements.
Power your home with confidence using our All-in-One Stackable Residential Energy Storage System, designed for seamless integration, smart performance, and long-lasting reliability.
Specifications :
| Battery Specifications |
| Battery Ptype |
LiFePO4 |
| Rated voltage range |
153.6~358.4V |
| Rated capacity range |
15kwh ~35kwh |
| Max Charge/Discharge Current |
50A/100A |
| System Performance |
| Operating Temperature |
-15°C~55°C |
| Working Altitude |
0-2000m |
| Waterproof Level |
IP20 |
| BMS Communication |
CAN |
| Electricity CommunicationPort |
RS485 |
| Cooling Method |
Cooling Fans |
| Output Waveform |
Pure Sine Wave |
| Switching time |
10ms |
| Max efficiency |
98.20% |
| European efficiency |
97.50% |
| MPPT efficiency |
99.5% |
| Noise Level |
<35dB |
| Warranty |
5 years |
| Inverter Specifications |
| Phase selection |
Single-phase/Three-phase |
| Inverter options |
8/10/12/15 KW |
| Inverter voltage range |
125~600VA |
| Grid voltage range |
360~440V |
| PV input power |
4KW |
| Max.PV charge current |
80A |
| AC charge current |
60A |
| Rated output power |
10KW |
| Max DC Input Voltage |
1000V |
| MPPT Work Voltage Range |
125~850V |
| Start Voltage |
125V |
| Rated output voltage |
400V,3W+N+PE |
| Rated frequency(Hz) |
50Hz/60Hz |
| Mechanical Specifications |
| Inverter dimensions |
600*400*850mm |
| Inverter weight |
75.6KG |
| Battery module dimensions |
600*400*200mm |
| Battery module weight |
46.9KG |
| Base dimensions |
600*400*55mm |
| Base weight |
10.8KG |
