Place of Origin:
CHINA
Brand Name:
HEYI
Certification:
ISO9001 , UN38.3, MSDS
Model Number:
240V100AH

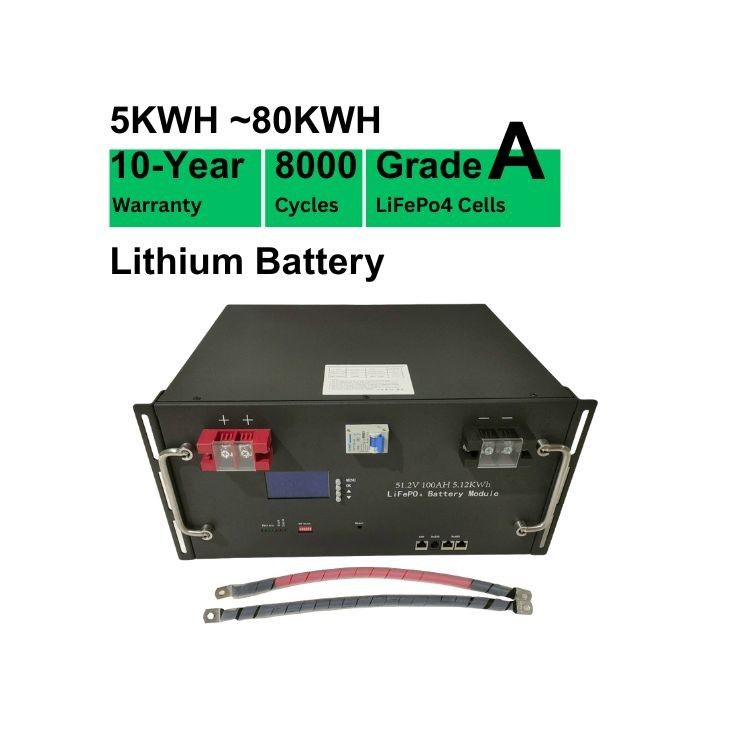

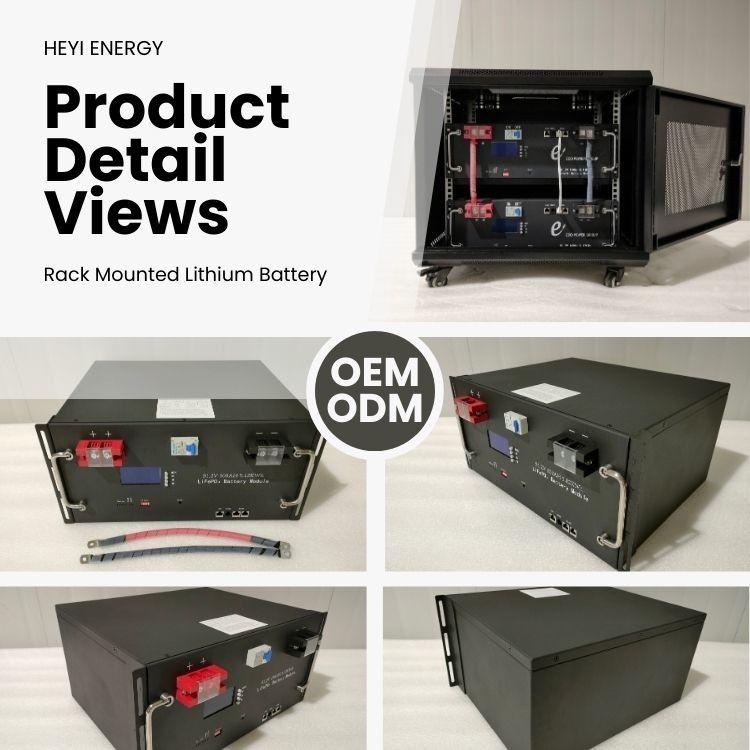

This 5kWh ~160kWh rack mounted battery system is an easy to install, space conscious, modular battery energy storage solution .The ease of installation and modular design make for an ideal residential and small business solution. Power everything in your home or business while feeling a peace of mind because of the safety and benefits of using Lithium Iron Phosphate technology. Experience life uninterrupted during power outages caused brownouts, black outs, heatwaves, flooding, freezing rain, severe wind, squirrels, natural disasters and any other reason.
An intelligent built-in BMS battery management system monitors cell’s information including voltage, current and temperature while extending the cycle life by balancing cells during charging and discharging. Up to 32 modules are able to be connected in parallel to expand the capacity and power .
Features :
Specification :
Specifications | ||||
Model | HY480–100–H | HY480–200–H | HY480–300–H | HY480–100*N–H |
Nominal Voltage | 480V | 480V | 480V | 480V |
Nominal Capacity | 100Ah | 200Ah | 300Ah | 100Ah*N |
Energy | 48/51.2kWh | 96/102.4kWh | 144/153.6kWh | 48/51.2kWh*N |
Cycle Life | ≥6000T@80%DOD,0.5C/0.5C,25℃ | |||
Charge Voltage | 540V~576V | 540V~576V | 540V~576V | 540V~576V |
Standard Charge Current | 50A | 100A | 150A | 50A*N |
Max.Charge Current | 100A | 200A | 300A | 100A*N |
Discharge Cut-off Voltage | 390V~416V | 390V~416V | 390V~416V | 390V~416V |
Discharge Current | 50A | 100A | 150A | 50A*N |
Max.Discharge Current | 100A | 200A | 300A | 100A*N |
Discharge Temperature | -20~55℃ | |||
Charge Temperature | 0~55℃ | |||
Storage Temperature | -10~45℃ | |||
Communication | RS485 / CAN | |||
Display | LCD | |||
Terminal | Anderson / Connector | |||
Designed Life | 10 years | |||
Waterproof | IP 54 | |||
Weight | 490kg | 980kg | 1470kg | 490kg*N |
Dimension | 600*600*2200mm | 600*1000*2200mm | 600*1000*2000mm*2 | 600*600*2200mm*N |
Applications :
Communication base station , Data center , Home energy storage system , RV
Lithium iron phosphate batteries as known as LFP or LiFePO4 are the safest types of lithium batteries. Lithium Iron Phosphate batteries do not explode, ignite, and are not prone to thermal run. Therefore, LFP batteries are the ideal chemistry choice for demanding applications like battery electrical storage solution or BESS for short. Some of its features are:
We can arrange Door to Door delivery service for small orders or samples .
HEYI ENERGY is a leading high-tech enterprise specializing in the development and manufacturing of advanced lithium battery technologies. Established in 2014, we focus on lithium iron phosphate (LiFePO4) and lithium-ion (NMC) battery solutions, delivering safe, reliable, and efficient energy storage systems for global markets.
Our state-of-the-art production facilities span over 50,000 square meters, equipped for the large-scale manufacturing of both battery cells and packs. With a workforce of more than 1,500 employees, including over 300 experienced R&D engineers, we continuously drive innovation and quality through technological leadership.
HEYI ENERGY proudly provides OEM and ODM solutions to 100+ global partners, enabling customized energy solutions across a wide range of applications. Our product portfolio includes:
Residential energy storage systems
Commercial and industrial energy storage solutions
Power batteries for various vehicles and industrial machinery
Ultra-low temperature batteries for extreme environments
Our core technical team possesses extensive expertise in battery system design, battery management systems (BMS), operational control, and rigorous cell and module testing. From the initial concept to the final product, we ensure system compatibility, stability, and long-term reliability.
At HEYI ENERGY, our mission is to provide sustainable, cost-effective power solutions that not only meet the evolving needs of our customers but also contribute to a greener, low-carbon future.
HEYI ENERGY – A globally recognized manufacturer of lithium battery and solar energy products.
