Place of Origin:
CHINA
Brand Name:
HEYI
Certification:
ISO 9001 , MSDS , UN38.3
Model Number:
550W

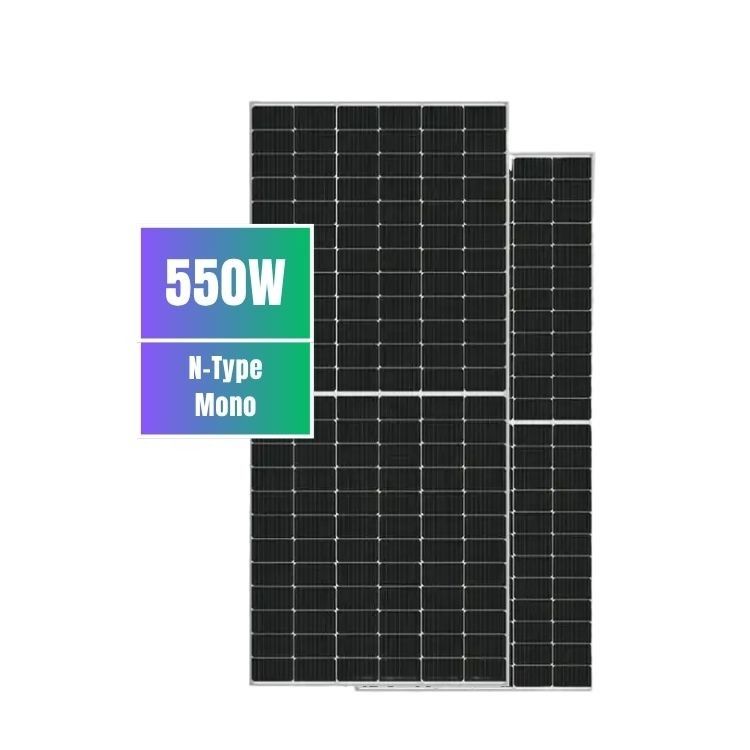

This high-quality solar panel is built with A-grade battery cells, offering excellent energy conversion efficiency and long-term performance. The panel is covered with high-transmittance tempered glass, featuring a 93% light transmission rate and outstanding durability. It effectively resists hail, snow, and wind pressure up to 5400Pa, ensuring stable operation in harsh environments.
The anodized aluminum alloy frame enhances structural integrity while providing superior waterproof sealing. An independent IP68-rated junction box ensures reliable electrical safety and protection against dust and water ingress.
Designed with user-friendly mounting holes, the panel allows for quick, secure, and hassle-free installation, making it ideal for residential, commercial, and off-grid applications.
FEATURES
High-Efficiency Cells
Equipped with A-grade solar cells for excellent energy conversion and long-term stability.
Durable Tempered Glass
93% light transmittance with high impact resistance. Withstands hail, heavy rain, snow, and up to 5400Pa wind pressure.
Sturdy Aluminum Frame
Made from anodized aluminum alloy, offering strong structural support and effective waterproof sealing.
IP68 Junction Box
Independent junction box with IP68 protection rating ensures safety, durability, and reliable performance in outdoor conditions.
Easy Installation
Human-centered mounting hole design allows for quick, secure, and hassle-free installation across various applications.
SPECIFICATIONS :
Power(W)
|
Size(mm)
|
Vm(V)
|
Im(A)
|
Voc(V)
|
Isc(A)
|
Package
|
182-680-M
|
2384*1303*33mm
|
39.6
|
17.1
|
47.4
|
18.2
|
32PCS/Pallet
|
182-600-M
|
2382*1134*35mm
|
47
|
14.7
|
47.5
|
15.7
|
32PCS/Pallet
|
182-550-M
|
2278*1134*35mm
|
41
|
13.4
|
50.8
|
14.6
|
32PCS/Pallet
|
182-500-M
|
2094*1134*35mm
|
38
|
13.2
|
47
|
14.3
|
32PCS/Pallet
|
182-450-M
|
1909*1134*35mm
|
35
|
12.9
|
43.3
|
14
|
32PCS/Pallet
|
182-400-M
|
1724*1134*35mm
|
31
|
12.9
|
38.4
|
14.1
|
32PCS/Pallet
|
182-360-M
|
1515*1134*35mm
|
27
|
13.3
|
33.4
|
14.5
|
32PCS/Pallet
|
182-330-M
|
1425*1134*35mm
|
34
|
9.7
|
42.1
|
10.6
|
32PCS/Pallet
|
182-300-M
|
1290*1134*30
|
34
|
8.8
|
42.1
|
9.6
|
32PCS/Pallet
|
182-240-M
|
1515*780*30
|
18
|
13.3
|
22.3
|
14.5
|
32PCS/Pallet
|
182-200-M
|
1290*780*30
|
21
|
9.5
|
26
|
10.4
|
2PCS/BOX
|
182-180-M
|
1150*780*30
|
18
|
10
|
22.3
|
10.9
|
2PCS/BOX
|
182-160-M
|
1025*760*30
|
18
|
8.9
|
22.3
|
9.7
|
2PCS/BOX
|
182-120-M
|
1070*585*30
|
18
|
6.7
|
21.3
|
7.3
|
2PCS/BOX
|
182-110-M
|
970*580*30
|
18
|
6.4
|
22.3
|
7
|
2PCS/BOX
|
We can arrange Door to Door delivery service for small orders or samples .
