Name: High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh
Brand: Heyi Energy Co,.ltd
SKU: 48V100Ah
Price: 600.00 USD
Availability: InStock

Home > products > 48V Lithium Battery >

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh

High Safety 48v100ah Lithium Battery

Home Energy Storage Battery 5kWh

48v100ah Lithium Battery 5kWh

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

UN38.3 , MSDS , IS9001

Model Number:

48V100Ah

Request A Quote

Product Details

Nominal Voltage:

48V

Capacity:

5 KWh

Protocol:

RS485 And RS232

Protection:

Built-in BMS

Standard Charge Current:

Constant Current 1C

Design:

Rack Mounted

Cell Type:

Prismatic Cell

The Charging Ratio:

100Ah

Chemistry:

LiFePO4

Highlight:

High Safety 48v100ah Lithium Battery

Home Energy Storage Battery 5kWh

48v100ah Lithium Battery 5kWh

Payment & Shipping Terms

Minimum Order Quantity

Price

USD500~700

Packaging Details

wooden case

Delivery Time

10 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1 GWH

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh

Get Best Price

Customized Logo Lifepo4 48 Volt Solar Batteries Compact 20kwh Home Battery

Get Best Price

Ultra Safe 48V Lithium Battery Pack For Solar Energy Storage And Backup Power RoHS Compliant

Get Best Price

Customization 48V Lithium Battery Pack For Scooter Motorcycles 70lbs Lightweight

Get Best Price

+86 18674708020

info@heyienergy.com

Contact Now

Product Description

48v100ah Lithium Batteries For Home Energy Storage System

Our 24V and 48V LiFePO₄ Modular Battery Series delivers high-performance energy storage tailored for residential, commercial, and telecommunications use. Constructed with brand-new Grade A lithium iron phosphate cells and equipped with a sophisticated Battery Management System (BMS), it ensures excellent safety, long cycle life, and hassle-free installation.

Ideal for both new installations and system upgrades, this modular battery is built to provide dependable power in off-grid conditions or areas with unstable grid access.

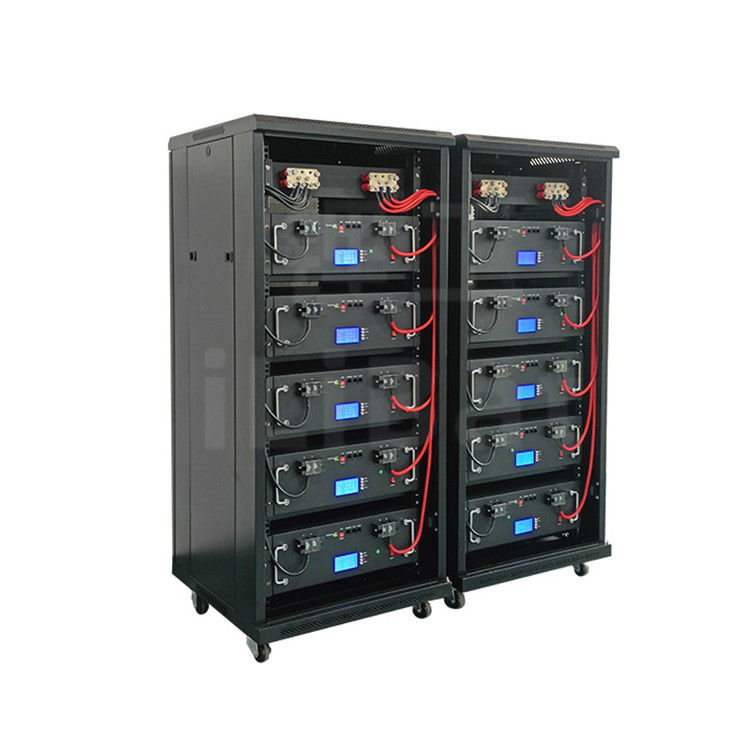

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh 0

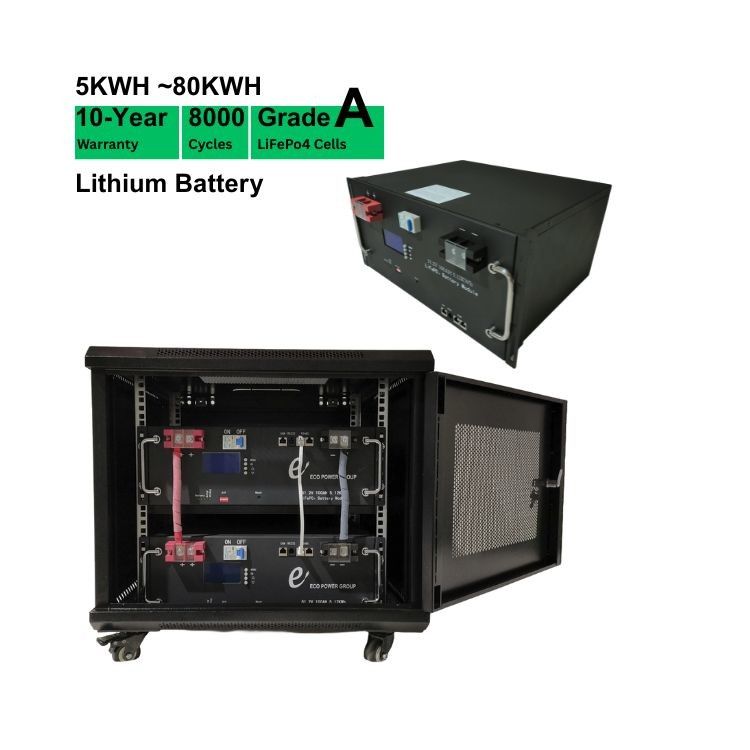

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh 1

Specification :

Model	SM24-100	SM24-150	SM24-200	SM48-50	SM48-100	SM48-150
Energy	2560Wh	3840Wh	5120Wh	2400Wh	4800Wh	7200Wh
Nominal Voltage (V)	25.6V	25.6V	25.6V	48V	48V	48v
Rated Capacity (Ah)	100Ah	150Ah	200Ah	50Ah	100Ah	150Ah
Chemistry	Lithium Iron Phosphate (LiFePo4)
Design Life	More than 10 years
Cycle Life	More than 3500 cycles at 80% DOD.
Communication Protocol	CAN , RS485 , RS232
Display	LED Display Optional
Internal Impedance	50 mΩ
Max. Charging Current	50A	80A	100A	50A	100A	100A
Max. Continue Discharging Current	80A	100A	100A	70A	100A	100A
Battery Dimensions (MM)	438375133mm	442400177mm	442400177mm	438375133mm	442400177mm	442400177mm
Weight	Approx: 40kg	Approx: 58kg	Approx: 70kg	Approx: 40kg	Approx: 70kg	Approx: 80kg
Battery Protection	Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material	Black Power Coated steel case (battery rack or cabinet is optional)
Operating Temperature	Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh 2

Features :

Utilizes safe and reliable LiFePO₄ (lithium iron phosphate) chemistry with integrated safety features
Delivers high energy density while maintaining a compact and space-saving design
Capable of handling high charge/discharge currents for rapid charging and efficient power delivery
Designed for longevity, offering 6000+ cycles at 80% depth of discharge (DOD)
Equipped with a smart BMS that actively monitors and protects against overcharging, deep discharging, and thermal risks
Modular architecture allows for flexible installation—suitable for both wall-mounted and cabinet configurations
Engineered to operate across a wide temperature range, ensuring reliable performance in diverse conditions

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh 3

Applications :

Home solar storage systems
Wind-solar hybrid systems
Telecom base stations
Emergency backup power
Stationary energy storage projects

High Safety 48v100ah Lithium Battery Home Energy Storage Battery 5kWh 4
