Name: Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh
Brand: Heyi Energy Co,.ltd
SKU: 48V100Ah
Price: 600.00 USD
Availability: InStock

Home > products > Home Energy Storage System >

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh

Home Energy Storage System 48v100ah

4800Wh Home Energy Storage System

48v100ah Lithium Battery 4800Wh

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

UN38.3 , MSDS , IS9001

Model Number:

48V100Ah

Request A Quote

Product Details

Nominal Voltage:

48V

Capacity:

5 KWh

Logo:

Can Be Customized

Battery Cell:

LifePO4 3.2V

Protocol:

RS485 And RS232

Protection:

Built-in BMS

Standard Charge Current:

Constant Current 1C

Design:

Rack Mounted

Cell Type:

Prismatic Cell

The Charging Ratio:

100Ah

The Discharge Rate:

Chemistry:

LiFePO4

Installation:

Indoor Or Outdoor

Highlight:

Home Energy Storage System 48v100ah

4800Wh Home Energy Storage System

48v100ah Lithium Battery 4800Wh

Payment & Shipping Terms

Minimum Order Quantity

Price

USD500~700

Packaging Details

wooden case

Delivery Time

10 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1 GWH

Safe 5KWH Lifepo4 Battery Wall Mounted Energy Storage Battery Space Saving

Get Best Price

24V / 48V Rack Mount Lifepo4 Battery Modular Design For Solar Energy Storage Systems

Get Best Price

High Capacity 20kwh Lithium Battery All In One Inverter Battery For Home Energy Storage System

Get Best Price

video

51.2V300ah 15kwh Lifepo4 Battery All In One Solar Battery Easy Installation

Get Best Price

+86 18674708020

info@heyienergy.com

Contact Now

Product Description

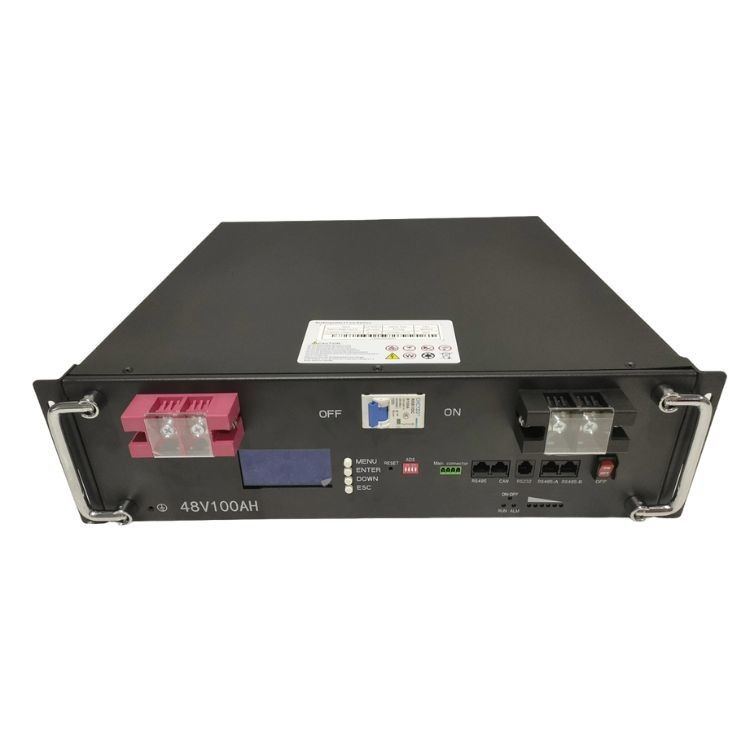

48v100ah Lithium Battery Rack Mounted Lifepo4 Batteries

Our 24V and 48V LiFePO₄ Modular Battery Series delivers high-performance energy storage tailored for residential, commercial, and telecommunications use. Constructed with brand-new Grade A lithium iron phosphate cells and equipped with a sophisticated Battery Management System (BMS), it ensures excellent safety, long cycle life, and hassle-free installation.

Ideal for both new installations and system upgrades, this modular battery is built to provide dependable power in off-grid conditions or areas with unstable grid access.

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh 0

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh 1

Specification :

Model	SM24-100	SM24-150	SM24-200	SM48-50	SM48-100	SM48-150
Energy	2560Wh	3840Wh	5120Wh	2400Wh	4800Wh	7200Wh
Nominal Voltage (V)	25.6V	25.6V	25.6V	48V	48V	48v
Rated Capacity (Ah)	100Ah	150Ah	200Ah	50Ah	100Ah	150Ah
Chemistry	Lithium Iron Phosphate (LiFePo4)
Design Life	More than 10 years
Cycle Life	More than 3500 cycles at 80% DOD.
Communication Protocol	CAN , RS485 , RS232
Display	LED Display Optional
Internal Impedance	50 mΩ
Max. Charging Current	50A	80A	100A	50A	100A	100A
Max. Continue Discharging Current	80A	100A	100A	70A	100A	100A
Battery Dimensions (MM)	438375133mm	442400177mm	442400177mm	438375133mm	442400177mm	442400177mm
Weight	Approx: 40kg	Approx: 58kg	Approx: 70kg	Approx: 40kg	Approx: 70kg	Approx: 80kg
Battery Protection	Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material	Black Power Coated steel case (battery rack or cabinet is optional)
Operating Temperature	Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh 2

Features :

Utilizes safe and reliable LiFePO₄ (lithium iron phosphate) chemistry with integrated safety features
Delivers high energy density while maintaining a compact and space-saving design
Capable of handling high charge/discharge currents for rapid charging and efficient power delivery
Designed for longevity, offering 6000+ cycles at 80% depth of discharge (DOD)
Equipped with a smart BMS that actively monitors and protects against overcharging, deep discharging, and thermal risks
Modular architecture allows for flexible installation—suitable for both wall-mounted and cabinet configurations
Engineered to operate across a wide temperature range, ensuring reliable performance in diverse conditions

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh 3

Applications :

Home solar storage systems
Wind-solar hybrid systems
Telecom base stations
Emergency backup power
Stationary energy storage projects

Rack Mounted Home Energy Storage System 48v100ah Lithium Battery 4800Wh 4
