15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure

15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure

48v280ah Lithium Home Battery

15kwh Lithium Home Battery

Wheeled Home Battery Storage System

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

ISO 9001 , UN38.3 , MSDS

Model Number:

15KWH

Contact Us
Request A Quote
Product Details
Voltage:
48V
Capacity:
280Ah
Energy:
15kwh
Highlight:

48v280ah Lithium Home Battery

,

15kwh Lithium Home Battery

,

Wheeled Home Battery Storage System

Payment & Shipping Terms
Minimum Order Quantity
1
Price
980~1580 USD
Packaging Details
wooden case
Delivery Time
10~20 working days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
1 GWH
Product Description

Batterie Lithium 15kwh 48v280ah Lithium Battery



Designed for residential, office, and light commercial applications, this 15kWh energy storage system features a vertical, freestanding structure with built-in wheels for effortless mobility and installation.

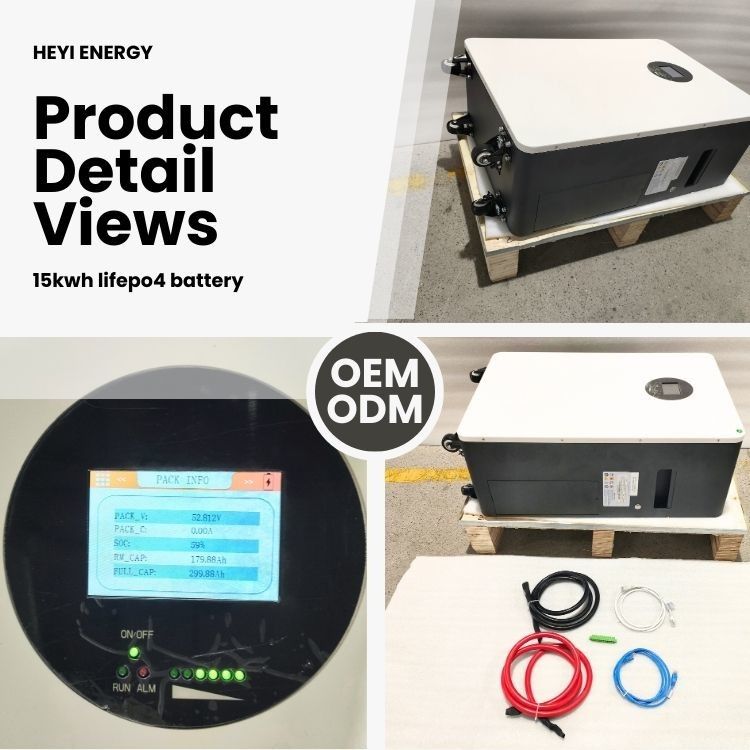

15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 0



  • Vertical, Wheeled Structure
    Built in a standing form with caster wheels for smooth relocation—great for homes, studios, and small offices.
  • Grade A LiFePO₄ Cells Inside
    Uses top-quality lithium iron phosphate batteries, offering strong safety performance and resistance to overheating.
  • Long-Term Power Solution
    Up to 8000 charging cycles, supporting more than 10 years of everyday usage without performance degradation.
  • Smart Protection System
    The intelligent BMS defends against battery stress like overcharging, over-discharging, and temperature swings.
  • Compact & Powerful
    More energy stored in less space—boosts efficiency while simplifying installation.
  • Fast Energy Flow
    Delivers and accepts high current for quick charging and stable output during high-load usage.
  • Modular Growth-Ready
    Need more power? Easily expand by linking up to 16 units together.
  • Remote Monitoring Options
    Equipped with RS485/CAN and optional Bluetooth/Wi-Fi for remote tracking and diagnostics.
  • Built for Extreme Conditions
    Operates safely from icy -20°C to scorching 60°C, perfect for a wide range of climates.
  • Zero-Maintenance Design
    Sealed construction means no upkeep—plug in and enjoy uninterrupted energy.
  •



 15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 1

15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 2

15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 3

15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 415kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 5



15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 6













SPECIFICATIONS :



Model HY15KWH
Energy  14336WH
Nominal Voltage (V) 51.2V
Rated Capacity (Ah) 280Ah
Chemistry Lithium iron phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 8000 cycles at 80% DOD.
Communication Protocol CAN , RS485
Display LED Display
Scalable(Parallel Function) Yes, Maximum 16 Packs
Max. Charging Current 100A
Max. Continue Discharging Current 100A

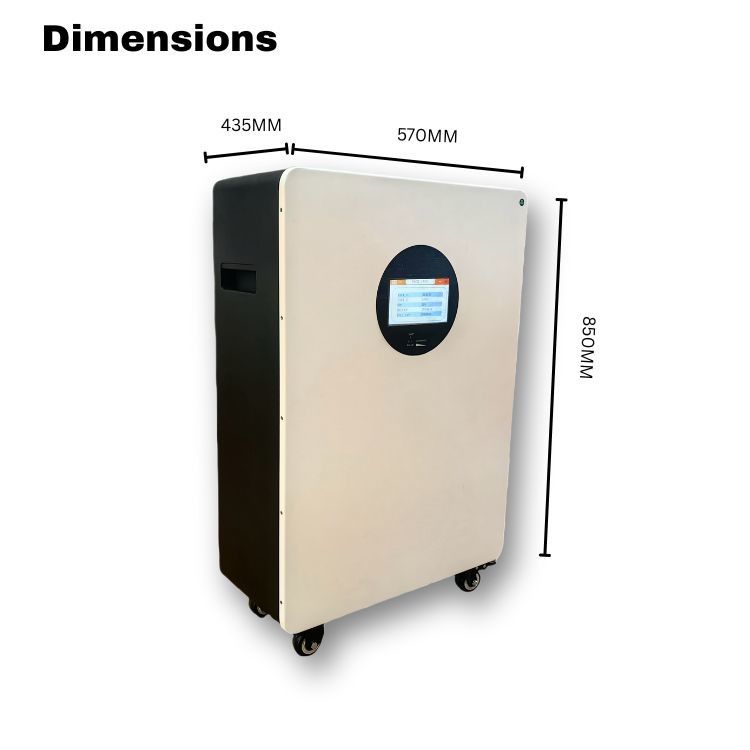

Battery Dimensions (MM) 850*570*435mm
Weight  Approx: 115kg
Battery Protection  Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Power Coated steel case IP60
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃





 15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 7



 15kwh 48v280ah Lithium Home Battery Storage System Wheeled Structure 8

Looking for a safe, long-lasting, and cost-efficient energy storage solution? Our 15kWh lithium iron phosphate (LiFePO₄) battery is engineered for residential and small commercial power systems. It features a built-in LCD display that clearly shows key metrics such as real-time voltage, current, charge level, energy output, and operating status—allowing users to manage and monitor their system with ease.

This high-performance battery integrates a smart battery management system (BMS) designed to prevent overcharging, deep discharging, overcurrent, overheating, and short circuits—ensuring reliable protection and consistent performance across a wide range of operating conditions.

Thanks to built-in RS485 and CAN communication protocols, the battery is fully compatible with many industry-leading solar inverters, hybrid systems, and MPPT solar charge controllers. It works seamlessly with popular off-grid and grid-tied setups.

Modular by design, our lithium storage units offer capacity options from 5kWh to 160kWh, supporting parallel expansion as your power needs grow. Whether you're upgrading an existing solar system or starting from scratch, this energy storage solution offers exceptional scalability and future-ready performance.
