Place of Origin:
China
Brand Name:
HEYI
Certification:
UN38.3 . MSDS
Model Number:
24V230ah

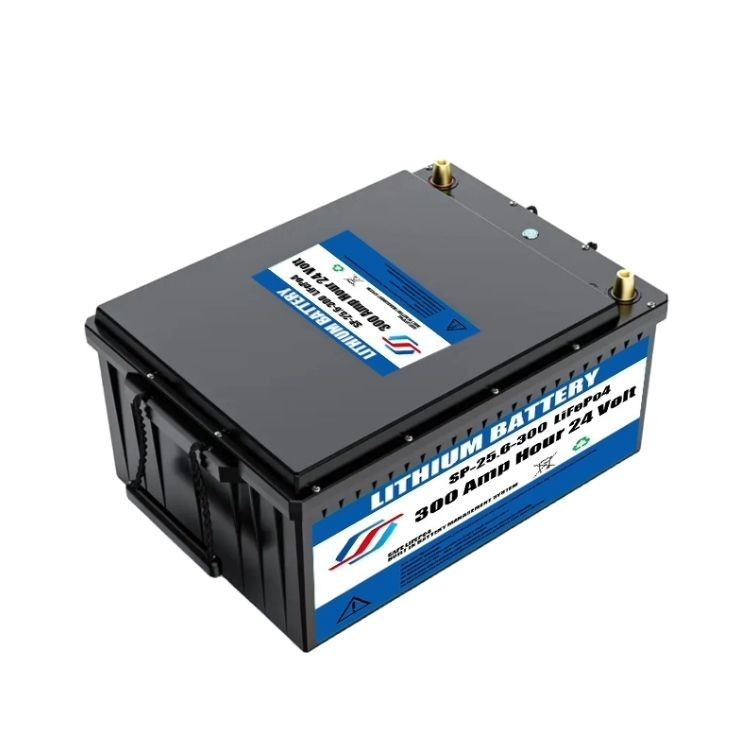

24V 230Ah 300Ah Lithium Crank Battery Dual Use for Truck Starter and Parking Air Conditioner
Designed for both engine ignition and auxiliary power, our 24V batteries deliver unmatched durability and performance. Whether starting a diesel engine or powering a parking AC system, the high CCA output and stable discharge rate ensure efficiency. LiFePO4 chemistry adds thermal stability, safety, and long cycle life—ideal for demanding environments and year-round use.
Specifications :
Material | LFP |
Nominal Voltage (V) | 25.6 |
Operating Voltage Range (V) | 16~28.4 |
Rated Capacity (Ah) | 200 / 230 /280 / 304 / 314 |
Continuous Charge/Discharge Current (A) | 150A/150A |
Cold Cranking Current @ -18°C (A) | 1500A/5S |
Cold Cranking Current @ -29°C (A) | 1100A/5S |
Operating Temperature Range (°C) | -40°C to 65°C |
Storage Temperature Range (°C) | -40°C to 75°C |
Dimensions (mm) | Custom made |
Weight (kg) | 40kg ~ 60kg |
Communication Protocol | CAN 2.0B |
Protection Rating | IP67 |
Cooling Method | Natural Cooling |
Vibration Resistance Level | V4 |
Features :
HEYI ENERGY’s lithium battery solutions are built for a wide range of electric mobility applications, including electric motorcycles, passenger EVs, utility vehicles, and light-duty trucks. We utilize advanced LiFePO4 prismatic cells and lithium-ion technology to ensure consistent power delivery, high safety standards, and extended cycle performance.
From 48V compact systems to high-voltage 96V 200Ah configurations, our customizable EV battery packs are engineered for efficiency, thermal protection, and long-term reliability in real-world driving conditions. Trust HEYI to power your next-generation electric vehicle platform with smart, scalable energy.
Applications :
Truck engine starting
Parking air conditioner systems
Refrigerated trucks
Construction and agricultural machinery
Buses and coaches
RVs and motorhomes
Mobile service vehicles
Off-grid power systems
Emergency backup battery
Marine 24V systems
HEYI ENERGY offer a full power solution of LiFePO4 battery pack + charger + control system
Our range covers from 12V / 24V / 48V / 72V / 96V to 800V.
With a capacity of 10 Ah / 20Ah / 30Ah / 50Ah / 100Ah / 200Ah / 600Ah.
If the standard batteries don’t fit for your application, then we can assembly a custom made Lithium battery based on your specifications .
Please send us your parameters as dimensions, voltage, capacity and required current and we will search together with you for a solution.
High reliability with lithium iron phosphate battery cells and lithium nmc battery options
One-stop solution: battery pack of electric vehicle + charger + control system
Support for battery swapping stations and ev swapping station designs
Direct partnerships with leading lithium battery manufacturers and battery cell suppliers
Superior quality control with nmc battery cell, ncm lithium ion battery, and lifepo4 prismatic cells
Full after-sales support and technical consultation for your custom EV project.
Send your inquiry directly to us
