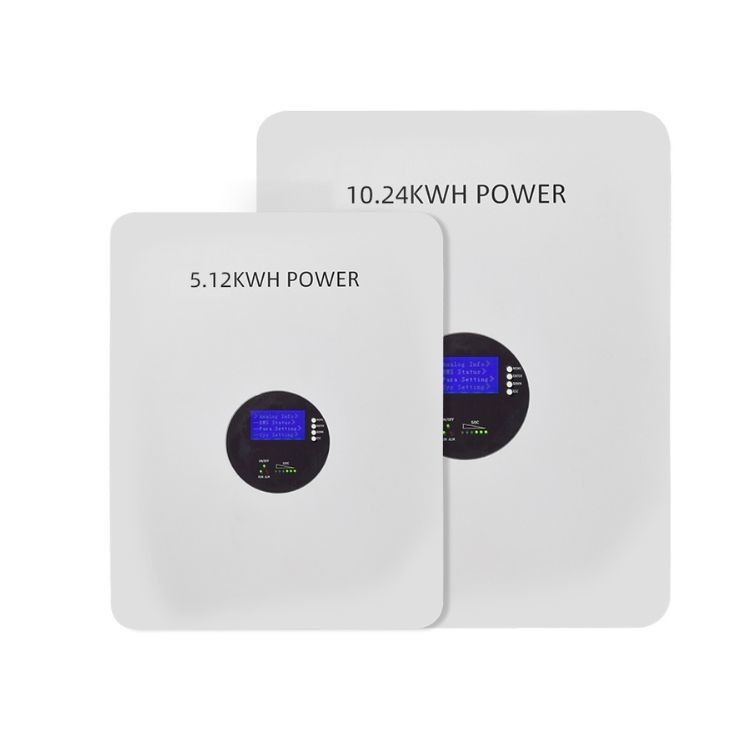

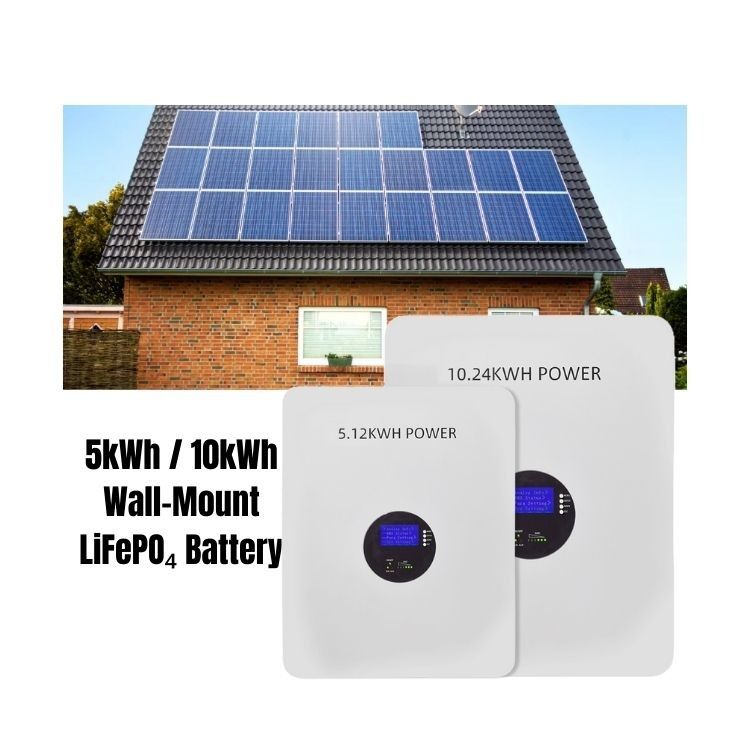

Home Energy Storage 48v200ah Lithium Powerwall Battery 5kwh 10kwh 15kwh Lithium Solar Batteries
This 5kWh Powerwall is a safe, durable, and cost-effective energy storage solution, ideal for residential solar systems. Built with high-quality LiFePO₄ cells and a smart Battery Management System (BMS), it delivers stable performance and long service life.
An integrated LCD screen provides real-time monitoring of voltage, current, state of charge, power output, and system status—ensuring users stay informed at all times.
The system supports smart communication via RS485/CAN, and is widely compatible with major brands of off-grid and hybrid inverters, as well as MPPT solar charge controllers.
With modular capacity options from 5kWh to 160kWh, this Powerwall system is fully scalable to meet growing household energy demands.
.
Wall-Mounted & Space-Saving
Slim, compact design for easy wall installation—perfect for residential or office settings.
Safe and Stable LiFePO₄ Technology
Built with Grade A lithium iron phosphate cells for excellent thermal stability and safety.
Long Service Life
Delivers up to 8000 deep charge-discharge cycles, ensuring over 10 years of reliable operation.
Advanced Battery Management System (BMS)
Integrated BMS offers comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes.
High Energy Density
Maximizes power storage in a compact footprint, reducing installation space and enhancing overall efficiency.
Strong Charge and Discharge Performance
Supports high current input and output for rapid charging and consistent power delivery.
Scalable Design
Easily expandable—supports parallel connection of up to 16 units to meet higher energy demands.
Smart Communication Options
Compatible with RS485/CAN protocols and supports optional Wi-Fi or Bluetooth app-based monitoring.
Wide Operating Temperature Range
Engineered to perform reliably in temperatures ranging from -20°C to 60°C.
Maintenance-Free Operation
Sealed, self-contained design requires no daily maintenance—just install and power on.
SPECIFICATIONS :
| Model |
HY5KWH |
HY10KWH |
| Energy |
5120WH |
10240WH |
| Nominal Voltage (V) |
51.2V |
51.2V |
| Rated Capacity (Ah) |
100Ah |
200Ah |
| Chemistry |
Lithium iron phosphate (LiFePo4) |
| Design Life |
More than 10 years |
| Cycle Life |
More than 8000 cycles at 80% DOD. |
| Communication Protocol |
CAN , RS485 |
| Display |
LED Display |
| Scalable(Parallel Function) |
Yes, Maximum 16 Packs |
| Max. Charging Current |
100A |
200A |
| Max. Continue Discharging Current |
100A |
200A |
| Battery Dimensions (MM) |
565*445*124mm |
748*525*230mm |
| Weight |
Approx: 45kg |
Approx: 75kg |
| Battery Protection |
Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance |
| Outer Package Material |
Power Coated steel case IP60 |
| Operating Temperature |
Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃ |
