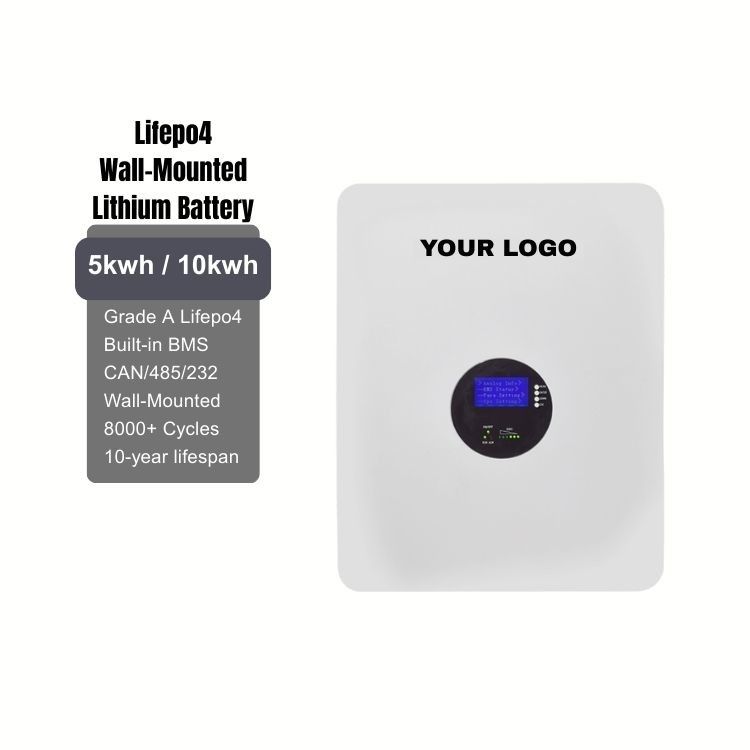

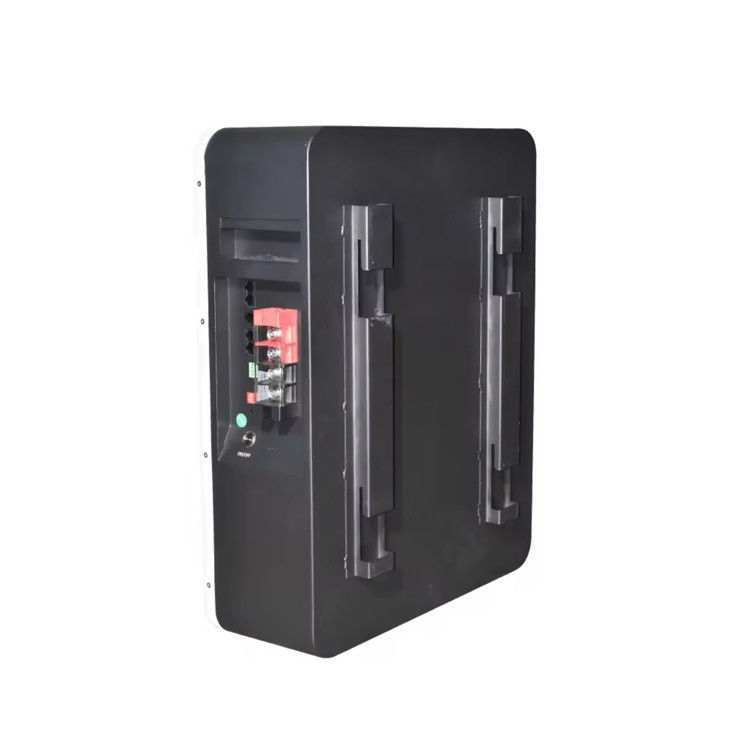

IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh

IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh

IP65 10kwh Home Battery

Wall Mounted Solar Battery 10.24kWh

10.24kWh lfp home battery

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

ISO ,MSDS , UN38.3

Model Number:

5KWH

Contact Us
Request A Quote
Product Details
Nominal Voltage:
48v/ 51.2v
Material:
LiFePO4
Backup Power:
Yes
Application:
Solar Energy Storage Systems
Nominal Capacity:
200ah
Protection Class:
IP65
Capacity:
10.24 KWh
The Discharge Rate:
1C
Keywords:
Wall Mounted Battery Home System
System Type:
Wall-mounted
Power Output:
5 KW Continuous, 10 KW Peak
Highlight:

IP65 10kwh Home Battery

,

Wall Mounted Solar Battery 10.24kWh

,

10.24kWh lfp home battery

Payment & Shipping Terms
Minimum Order Quantity
1
Price
399~899 USD
Packaging Details
wooden case
Delivery Time
around 20 working days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
up to 1 GWH yearly
Product Description

10kwh Wall Mounted Solar Battery Lfp Solar Battery



This Powerwall is safe, durable, and affordable. It is equipped with an LCD screen that displays voltage, current, state of charge, power output, and operating status. The built-in smart battery management system integrates multilevel safety features to ensure excellent performance.

The battery supports smart communication functions via RS485/CAN and is compatible with many well-known brands of off-grid or hybrid inverters and MPPT controllers.

With optional capacities ranging from 5 kWh to 160 kWh, our systems can be seamlessly expanded to accommodate the evolving energy needs of households over time .



IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 0



  • Wall-Mounted & Space-Saving
    Slim design for easy installation on walls, ideal for home or office environments.

  • Safe & Stable LiFePO4 Chemistry
    Uses Grade A lithium iron phosphate cells—high thermal stability and excellent safety.

  • Long Lifespan
    Up to 8000 deep cycles with 10+ years of dependable performance.

  • Smart Battery Management System (BMS)
    Built-in protection against overcharge, over-discharge, overcurrent, short-circuit, and temperature fluctuations.

  • High Energy Density
    Stores more power in a compact form, reducing installation space and improving efficiency.

  • Strong Charge/Discharge Capability
    Supports high current rates for fast charging and stable output under load.

  • Parallel Expandable
    Supports up to 16 units in parallel for greater energy storage capacity.

  • Smart Communication
    RS485/CAN protocol compatibility, supports Wi-Fi/Bluetooth APP monitoring (optional).

  • Wide Operating Temperature
    Performs reliably from -20°C to 60°C, suitable for various climates.

  • No Maintenance Required
    Sealed design with zero daily upkeep—just install and use.



IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 1IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 2IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 3

IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 4













SPECIFICATIONS :



Model HY5KWH HY10KWH
Energy  5120WH 10240WH
Nominal Voltage (V) 51.2V 51.2V
Rated Capacity (Ah) 100Ah 200Ah
Chemistry Lithium iron phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 8000 cycles at 80% DOD.
Communication Protocol CAN , RS485
Display LED Display
Scalable(Parallel Function) Yes, Maximum 16 Packs
Max. Charging Current 100A 200A
Max. Continue Discharging Current 100A  200A
Battery Dimensions (MM) 565*445*124mm 748*525*230mm
Weight  Approx: 45kg Approx: 75kg
Battery Protection  Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Power Coated steel case IP60
Operating Temperature Charging: 0 to +50℃ Discharging: -20 to +60℃ Storage: -20 to +60℃



IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 5

 IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 6

 IP65 10kwh Home Battery LFP Wall Mounted Solar Battery 10.24kWh 7
