Place of Origin:
CHIAN
Brand Name:
HEYI
Certification:
UN38.3 MSDS
Model Number:
12V100AH

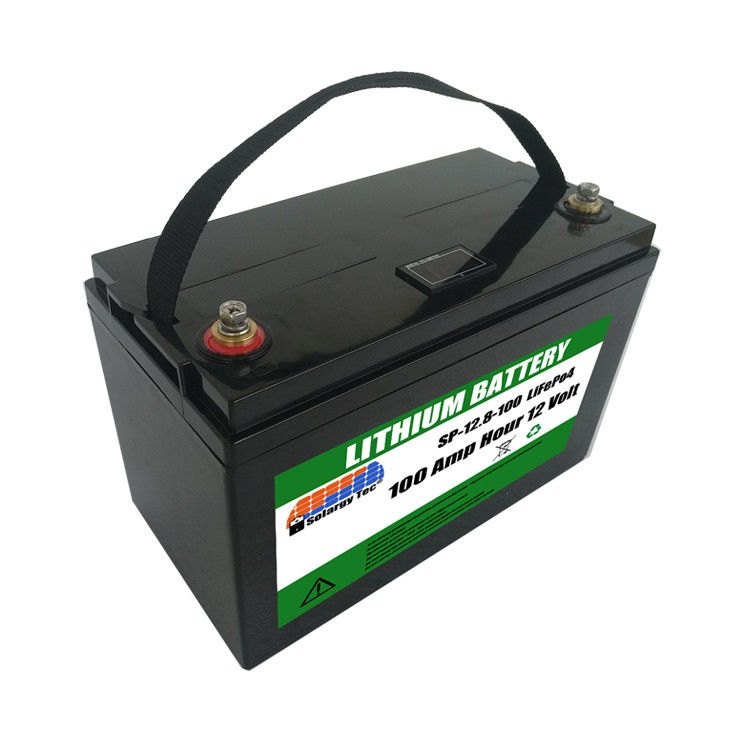

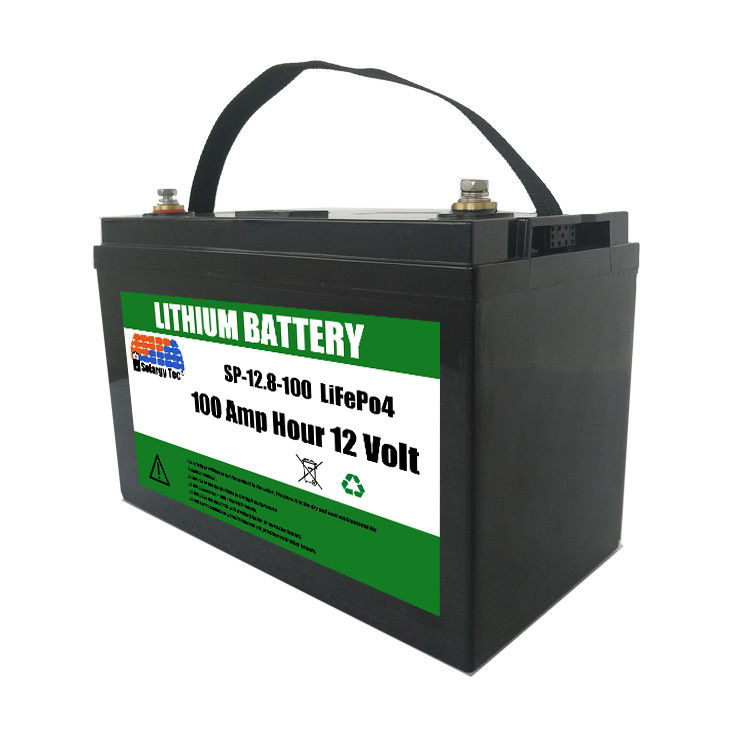

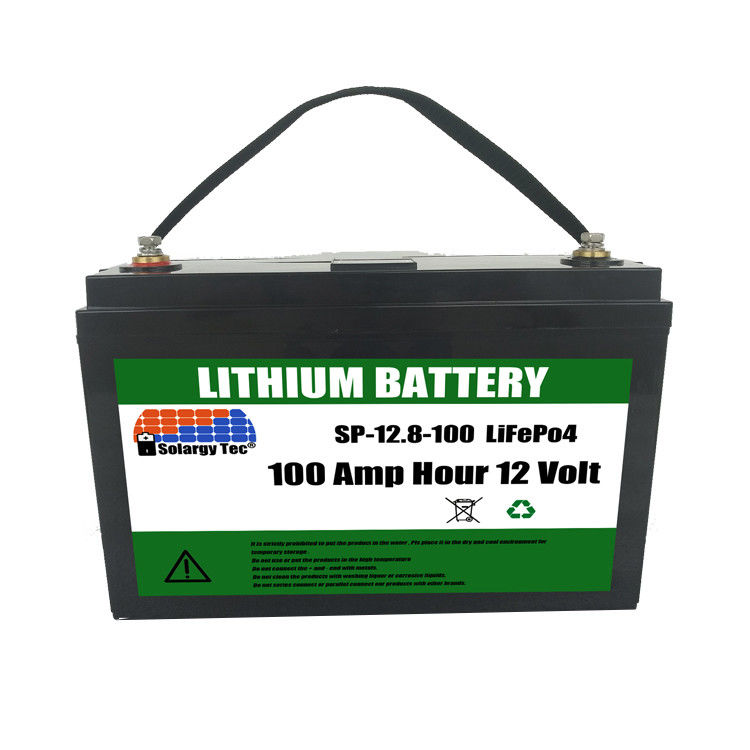

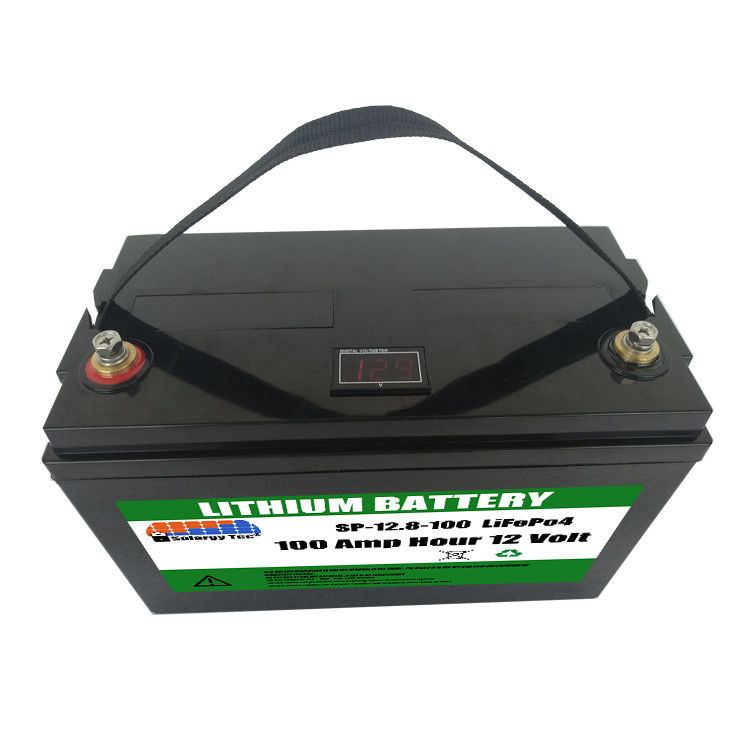

12V 100Ah Lithium Iron Phosphate Battery For Solar Storage
Replace your aging lead-acid battery with HEYI ENERGY’s robust lithium-ion solution. Our LiFePO₄ batteries provide greater energy density, up to 10x longer cycle life, and superior safety mechanisms. Perfectly suited for off-grid solar, electric vehicles, and portable power applications.
Specification :
Model | SL-LFP-12-100-PS | SL-LFP-12-200-PS | SL-LFP-12-300-PS |
Nominal Voltage (V) | 12.8V | 12.8V | 12.8V |
Nominal Capacity (Ah) | 100Ah | 200Ah | 300Ah |
Energy | 1280wh | 2560wh | 3840wh |
Battery Dimensions | 326x170x220mm | 410x180x230mm | 525x240x220mm |
Net Weight (Approx.) | 12kg | 21KG | 35kg |
Layout/Terminals | M8 | M8 | M8 |
Chemistry | Lithium Iron Phosphate (LiFePo4) | ||
Case /Packing | ABS case | ||
LCD display | Optional | ||
Blue tooth | Optional | ||
Comms. | Optional | ||
Cycle life | >3000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD | ||
Depth of Discharge (DoD) | 100% | ||
Charge model | CV/CC | ||
Charging voltage | 14.6V | ||
Optimum charge current range | 20A to 50A | ||
Rapid charging | Max. charge current 100A (1C) (Max Temperature increase within 15°C) | ||
BMS Charge Voltage Cut-Off | 15.0 V (3.75 ±0.025 vpc) (1 ±0.2 s) | ||
BMS Discharge Voltage Cut-Off | 8.8 V (2.2 ±0.08 vpc) (20ms) | ||
Standard charge current | 20A (0.2C) | 40A | 50A |
Max.Continuous discharge current | 100 Ampere | 200 Ampere | 200 Ampere |
Peak discharge current | 300A(3C) | 300A | 300A |
Operating temperatures | Standard 0℃~60℃ Discharge -30℃~75℃ Storage -20℃~45℃ |
||
Storage performance | Capacity can be kept ≥ 80% in storage for 12months |
Features :
✔ Thermal-Proof Design – LiFePO4 stays cool under heavy loads
✔ Endurance Champion – 6,000 cycles at 80% DOD
✔ Hassle-Free Upgrade – Direct fit for lead-acid slots
✔ Weight Saver – Carry & mount with ease
✔ Speed Charging – No downtime, minimal wait
✔ Versatile Voltage – 12V & 24V options in one lineup
✔ Guardian BMS – Stops damage before it happens
✔ Clean Power – Free of cadmium, mercury & lead
Advantages :
Brand New Grade A Cells Only: We strictly use LFP prismatic battery cells for maximum quality and reliability.
Long Service Life: Up to 10 years design lifespan.
Maintenance-Free: No water refilling or corrosion issues as with traditional batteries.
Safe Transportation: Certified for air, sea, and ground shipment (UN38.3, MSDS).
Cost Effective: Despite the higher upfront cost compared to lead-acid, total ownership cost is much lower over tim
Applications :
Electric vehicles (EV), electric scooters, electric bikes, and electric motorcycles
Marine: Custom marine lithium batteries and boat lithium batteries
Recreational Vehicles (RV batteries)
Solar Energy Storage Systems
Industrial Equipment: Forklifts, floor machines, and backup power systems
Start-Stop Systems: Suitable for auto start stop system and car start stop battery upgrades
Energy Storage Projects: Home, commercial, and off-grid applications
Optional Features:
Bluetooth Monitoring
LCD Display
Heating Systems for Low-Temperature Environments
Professional Lithium Battery Manufacturer and Supplier
Only Sell Brand New Grade A Cells – no second-hand or downgraded cells
One-Stop Customization Service: Custom lithium battery packs, custom EV batteries, EV battery pack design, custom battery management solutions
Full Certifications: UN38.3, MSDS, CE, RoHS
Reliable Logistics: Secure packaging + global fast delivery
Competitive Price: Direct factory price for bulk orders, buy lithium battery solutions available
Send your inquiry directly to us
