Place of Origin:
China
Brand Name:
HEYI
Certification:
UN38.3 . MSDS
Model Number:
36V20Ah
Electric Scooter Lithium Battery 36V 20AH

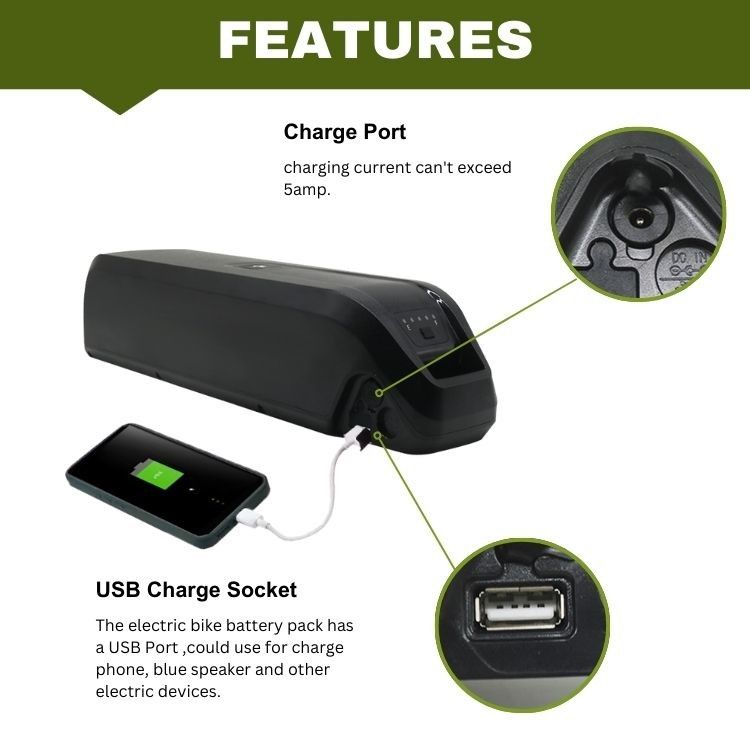

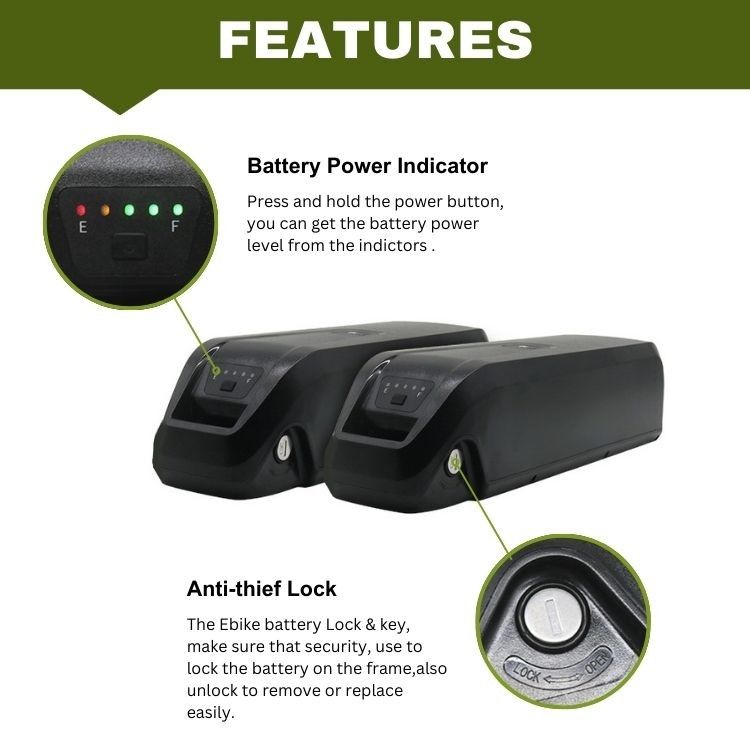

Our 24V, 36V, and 52V lithium batteries are engineered for e-bikes and electric scooters, integrating a smart BMS that safeguards against overcharging, deep discharging, overheating, and short circuits. Built from Grade A lithium cells and enclosed in rugged waterproof ABS shells, they support over 5000 cycles and outperform traditional batteries in durability. Features include a clear LED charge indicator, USB port for device charging, and a lock system for added security. Compatible with various electric two- and three-wheelers.
Specification :
Model | 36V/15Ah | 36V/20Ah | 48V/15Ah | 48V/20Ah | 52V/15Ah | 52V/20Ah |
Nominal Voltage (V) | 36V | 36V | 48V | 48V | 52V | 52V |
Nominal Capacity (Ah) | 15Ah | 20Ah | 15Ah | 20Ah | 15Ah | 20Ah |
Energy | 540Wh | 720Wh | 720Wh | 960Wh | 780Wh | 1040Wh |
Battery Dimensions (MM) | 367.5x95x89 | 367.5x95x122 | 367.5x95x89 | 367.5x95x122 | customized | customized |
Layout/Terminals | Anderson | Anderson | Anderson | Anderson | Anderson | Anderson |
Case /Packing | Aluminium | Aluminium | Aluminium | Aluminium | Metal Case | Metal Case |
LED display | Optional | Optional | Optional | Optional | Optional | Optional |
Blue tooth | Optional | Optional | Optional | Optional | Optional | Optional |
Comms. | NO | NO | NO | NO | Optional | Optional |
Charging Voltage | 54.6V | 71.4V | 71.4V | 71.4V | 84V | 84V |
Optimum charge current | 3A~5A | 3A~5A | 3A~5A | 3A~5A | 3A~5A | 3A~5A |
Max.Continuous discharge current | 50A | 80A | 50A | 80A | 50A | 80A |
Peak discharge current | 100A | 100A | 100A | 150A | 150A | 150A |
BMS Charge Voltage Cut-Off | 55.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) | 72.25V (4.25 ±0.025 vpc) (1.1 ±0.4 s) | 85.0V (4.25 ±0.025 vpc) (1.1 ±0.4 s) | |||
BMS Discharge Voltage Cut-Off | 36.4V (2.8 ±0.08 vpc) (100ms) | 47.6V (2.8 ±0.08 vpc) (100ms) | 56V (2.8 ±0.08 vpc) (100ms) | |||
Chemistry | Lithium-ion (NCM) | |||||
Cycle life | >2000cycle at 100% Depth of Discharge (DoD), up to 5000 cycles at 80% DoD | |||||
Operating temperatures | Standard 0℃~60℃ | |||||
Discharge -30℃~75℃ | ||||||
Storage -20℃~45℃ | ||||||
Storage performance | Capacity can be kept ≥ 80% in storage for 12months | |||||
Warranty | 3 years |
Features :
Applications :
E-Bikes / Scooters / Wheelchairs / Tricycle / Golf Cart / Electric Vehicles/Boat

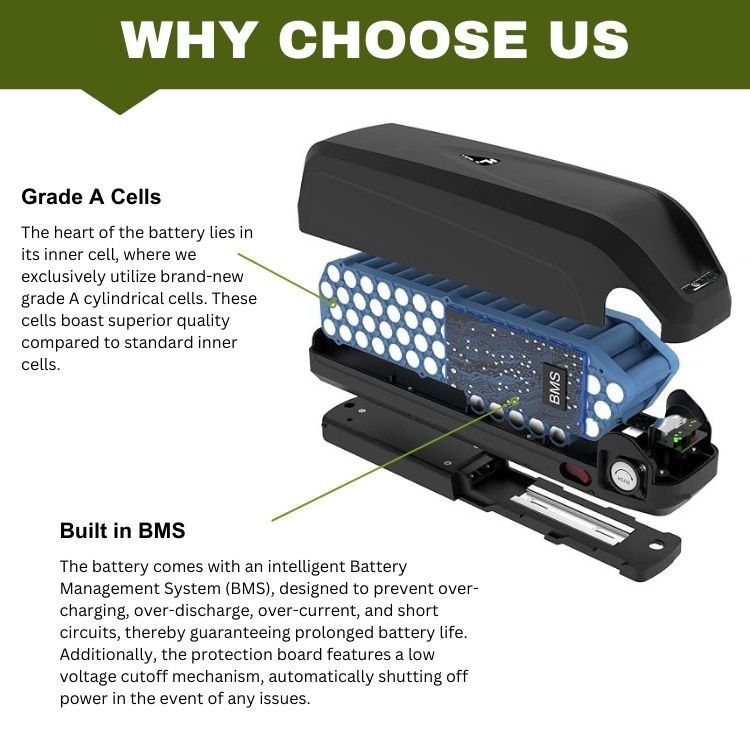

The heart of our batteries features brand-new Grade A cylindrical cells, delivering superior energy density and cycle life compared to standard cells.
Our intelligent Battery Management System (BMS) provides:
Protection against: Over-charging, over-discharge, over-current, and short circuits
Low-voltage cutoff: Automatic power shutdown for safety
Real-time voltage/temperature monitoring
