Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries

Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries

51.2v100ah Home Energy Storage System

51.2v100ah Rack Mounted Batteries

16S Rack Mounted Batteries

Place of Origin:

CHINA

Brand Name:

HEYI

Certification:

UN38.3 , MSDS , IS9001

Model Number:

51.2V100Ah

Contact Us
Request A Quote
Product Details
Nominal Voltage:
51.2V
Capacity:
5.12 KWh
Logo:
Can Be Customized
Battery Cell:
LifePO4 3.2V
Protocol:
RS485 And RS232
Protection:
Built-in BMS
Standard Charge Current:
Constant Current 1C
Design:
Rack Mounted
Cell Type:
Prismatic Cell
The Charging Ratio:
100Ah
The Discharge Rate:
1C
Chemistry:
LiFePO4
Installation:
Indoor Or Outdoor
Highlight:

51.2v100ah Home Energy Storage System

,

51.2v100ah Rack Mounted Batteries

,

16S Rack Mounted Batteries

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD500~700
Packaging Details
wooden case
Delivery Time
10 working days
Payment Terms
T/T,Western Union,MoneyGram
Supply Ability
1 GWH
Product Description

16S 51.2v100ah Lithium Battery Lifepo4 Modular Batteries

The 51.2V LiFePO₄ Modular Battery Series is a high-performance energy storage solution designed for residential, commercial, and telecom applications. Built with brand-new Grade A lithium iron phosphate cells and integrated with an advanced Battery Management System (BMS), this battery ensures superior safety, long service life, and easy installation.

Whether you're upgrading an existing energy system or starting a new setup, this modular battery delivers reliable power—perfect for off-grid environments and locations with unstable grid connectivity.

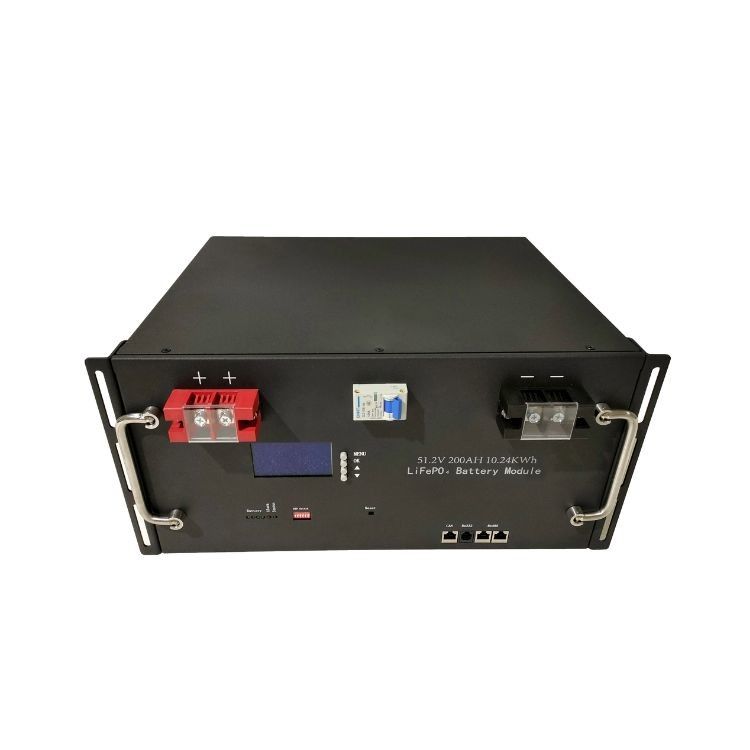

Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries 0

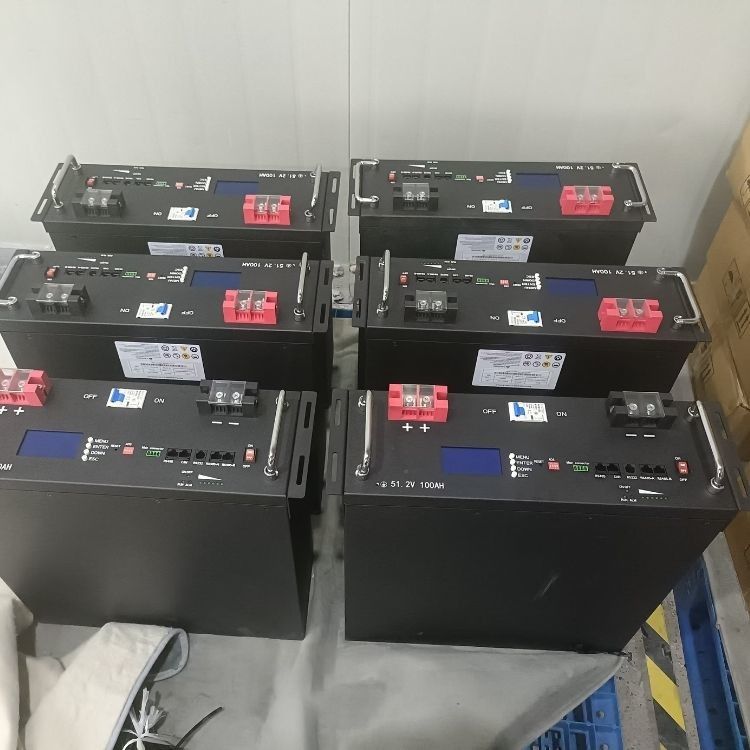

Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries 1

Specification :



Model SM24-100 SM24-150 SM24-200 SM48-50 SM48-100 SM48-150
Energy  2560Wh 3840Wh 5120Wh 2400Wh 4800Wh 7200Wh
Nominal Voltage (V) 25.6V 25.6V 25.6V 48V 48V 48v
Rated Capacity (Ah) 100Ah 150Ah 200Ah 50Ah 100Ah 150Ah
Chemistry Lithium Iron Phosphate (LiFePo4)
Design Life More than 10 years
Cycle Life More than 3500 cycles at 80% DOD.
Communication Protocol CAN , RS485 , RS232
Display LED Display Optional
Internal Impedance 50 mΩ
Max. Charging Current 50A  80A 100A 50A 100A  100A
Max. Continue Discharging Current 80A 100A 100A 70A 100A 100A
Battery Dimensions (MM) 438*375*133mm 442*400*177mm 442*400*177mm 438*375*133mm 442*400*177mm 442*400*177mm
Weight  Approx: 40kg Approx: 58kg Approx: 70kg Approx: 40kg Approx: 70kg Approx: 80kg
Battery Protection  Over-charge &Over discharge protection , over current protection ,over temperature production , short-circuit products , cells balance
Outer Package Material Black Power Coated steel case (battery rack or cabinet is optional)
Operating Temperature Charging: 0 to +50 Discharging: -20 to +60 Storage: -20 to +60













 Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries 2





  Features :



  • Safe & Proven Chemistry
    Leverages lithium iron phosphate (LiFePO₄) technology known for its excellent thermal and chemical stability, ensuring safe operation.

  • High Energy Density, Compact Design
    Offers significant energy storage in a compact footprint—ideal for space-constrained applications.

  • High Power Capability
    Supports high charge and discharge rates for faster charging and consistent power delivery.

  • Exceptional Lifespan
    Delivers over 6000 cycles at 80% depth of discharge, minimizing maintenance and replacement costs.

  • Advanced Battery Management System (BMS)
    Continuously monitors cell performance and provides protection against overcharging, over-discharging, and overheating.

  • Modular & Flexible Installation
    Scalable, stackable design suitable for both wall-mounted and cabinet-mounted configurations.

  • Wide Operating Temperature Range
    Maintains stable performance across various environmental conditions, enhancing reliability and versatility.

 Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries 3









Applications :

  • Home solar storage systems

  • Wind-solar hybrid systems

  • Telecom base stations

  • Emergency backup power

  • Stationary energy storage projects

Modular Home Energy Storage System 16S 51.2v100ah Lifepo4 Rack Mounted Batteries 4
